Self-alinging Rotator-HGZ Series

Stable Rotating process

The HGZ series has one drive unit which arrange of a continuous rotation with frequency

convension stepless speed controlling.

The 4 rollers joint align temselevesvia the diameter of the workpiece.

Features of self-aligning rotator

For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.

Welded, robust steel construction.

Adjustable rotating speed.

Automatically matching different diameter’s workpiece.

Unit equipped with 4 rollers each.

1 Power and 1 Idler turning rolls

1 Electric control system

1 control panel

1 remote pendant

Main Technical Parameter of Single Driving Rotator


Model	Max. load	Workpieces dia.	Roller material	Roller dia.	Roller width	Rolling speed	Roller motor
HGZ-5	5,000kg	Ø250-Ø2,500mm	Steel coated with PU	Ø250mm	100mm	6-60m/h	0.75kw
HGZ-10	10,000kg	Ø320-Ø3,200mm	Steel coated with PU	Ø300mm	120mm	6-60m/h	1.1kw
HGZ-20	20,000kg	Ø500-Ø3,800mm	Steel coated with PU	Ø350mm	150mm	6-60m/h	1.5kw
HGZ-40	40,000kg	Ø600-Ø4,500mm	Steel coated with PU	Ø400mm	160mm	6-60m/h	3kw

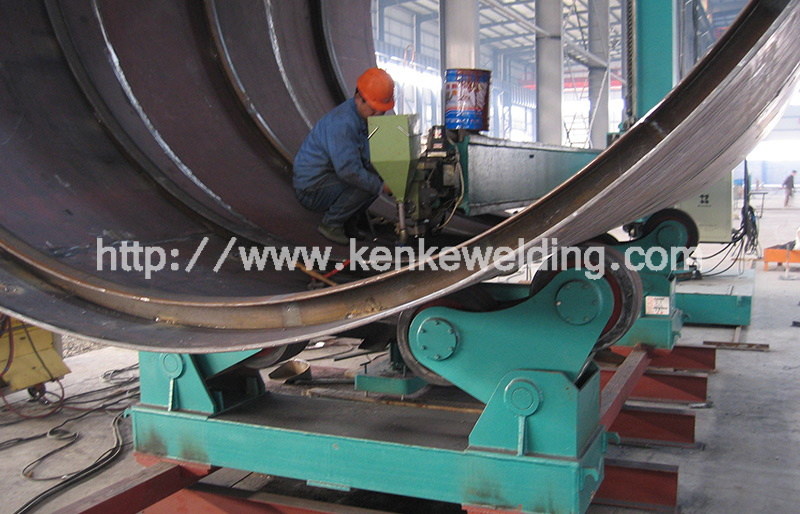

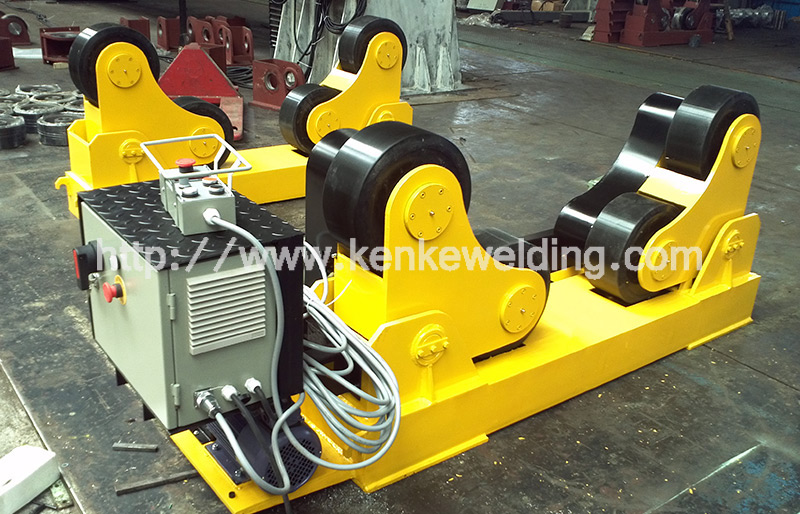

HGZ10 Single Driving Rotator

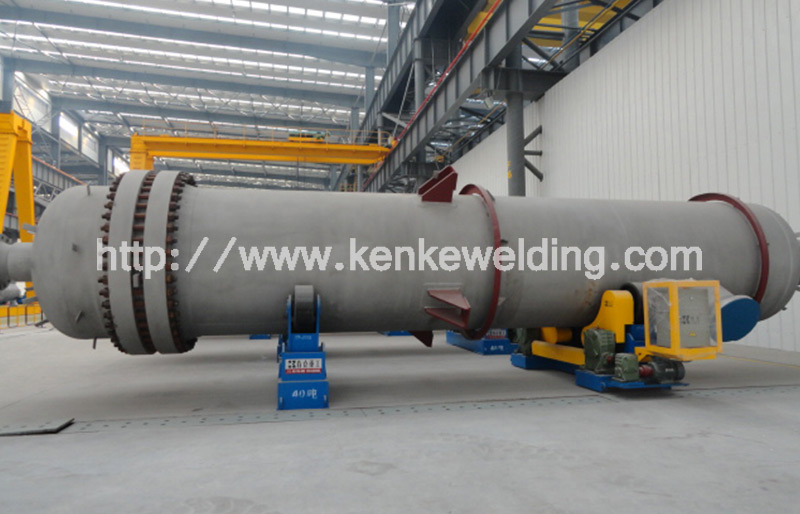

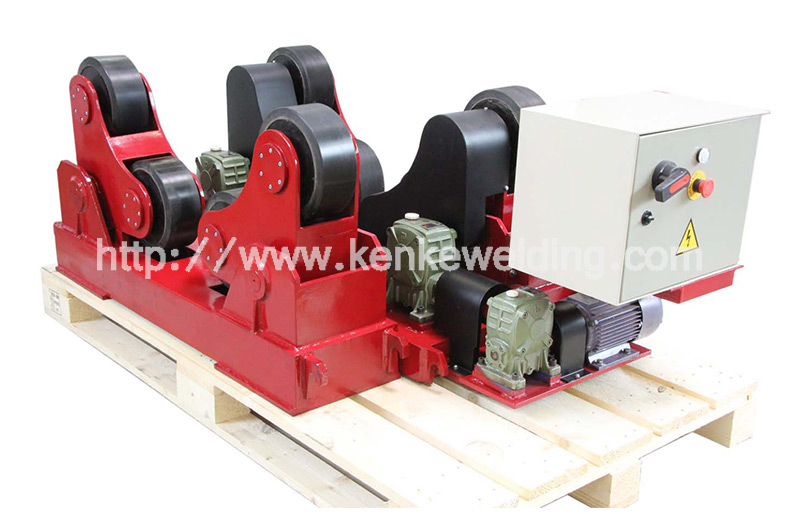

HGZ20 Single Driving Rotator

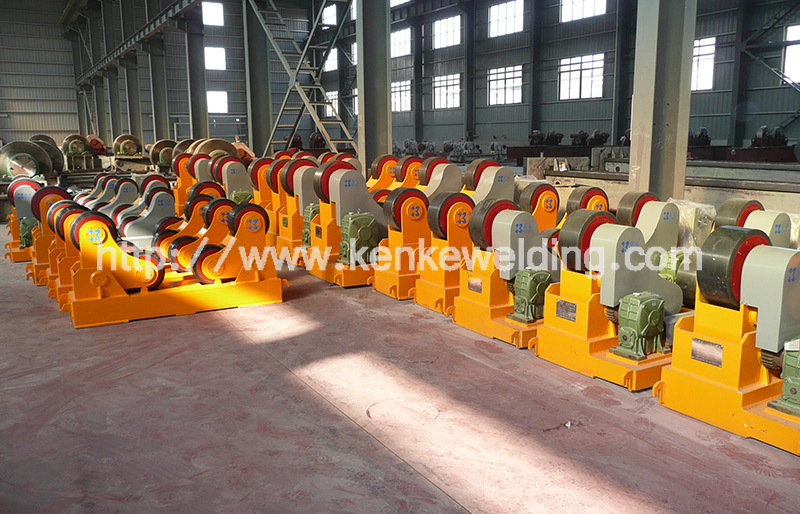

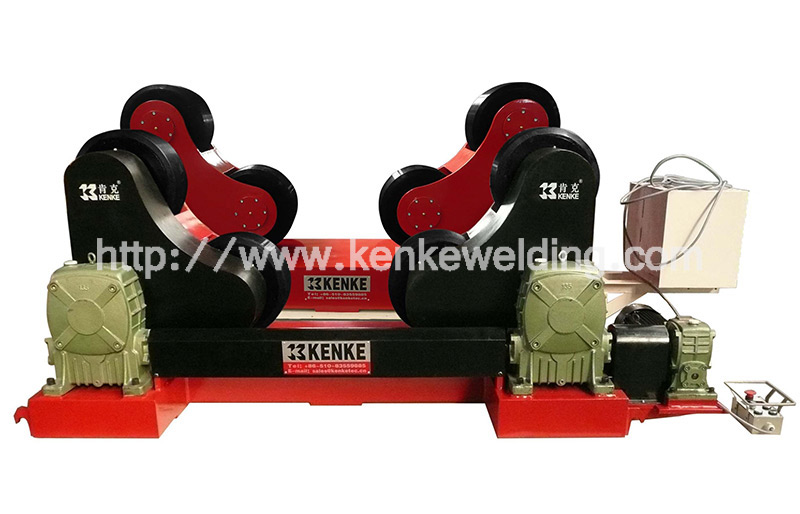

HGZ40 Single Driving Rotator

HGZ type Single driving Rotators
