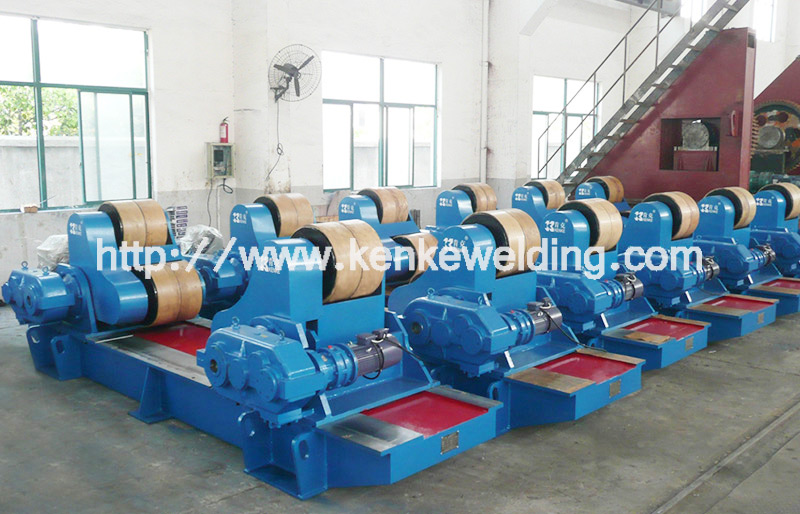

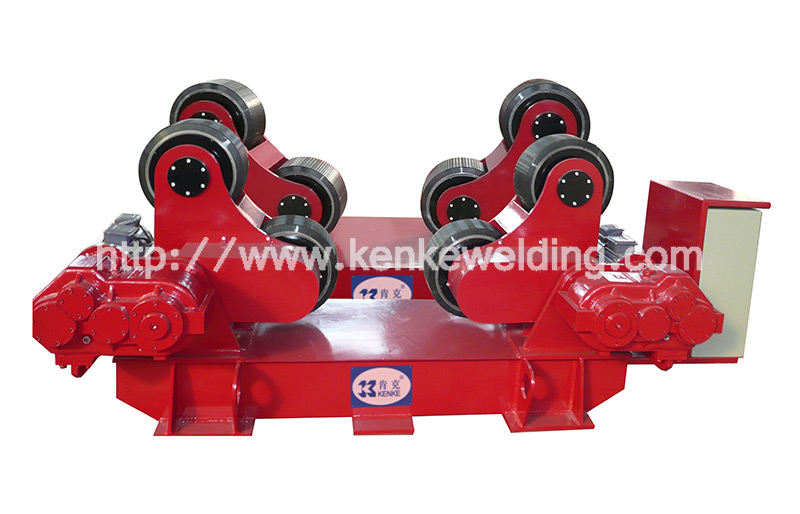

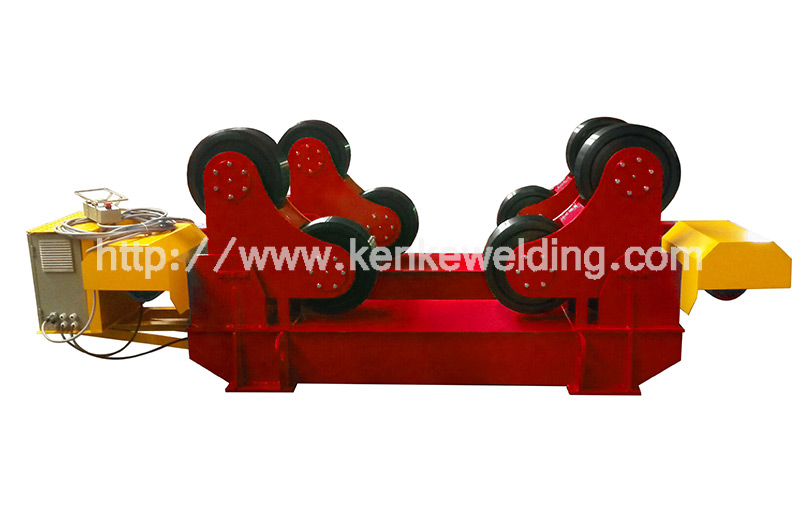

Self-centering
The HGZT series has two synchronously operating drive units which arrange for a continuous rotation with frequency conversion stepless speed controlling. The 4 rollers joint align themselves via the diameter of the workpiece.
Features of self-aligning rotator

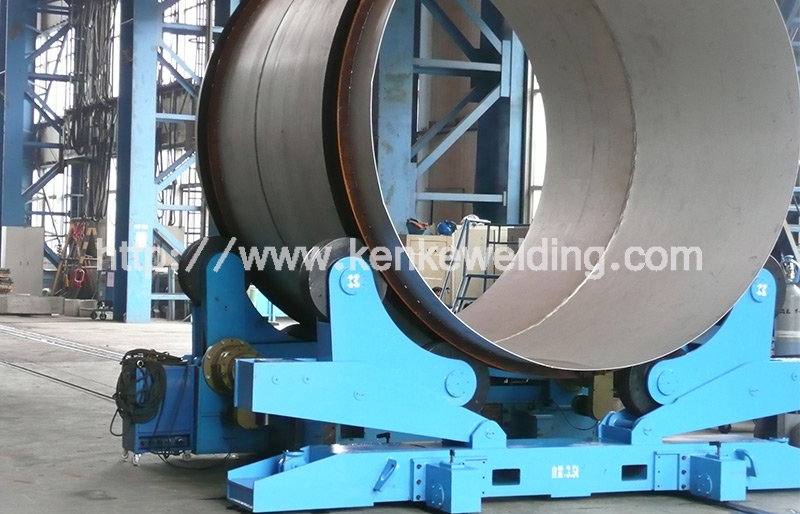

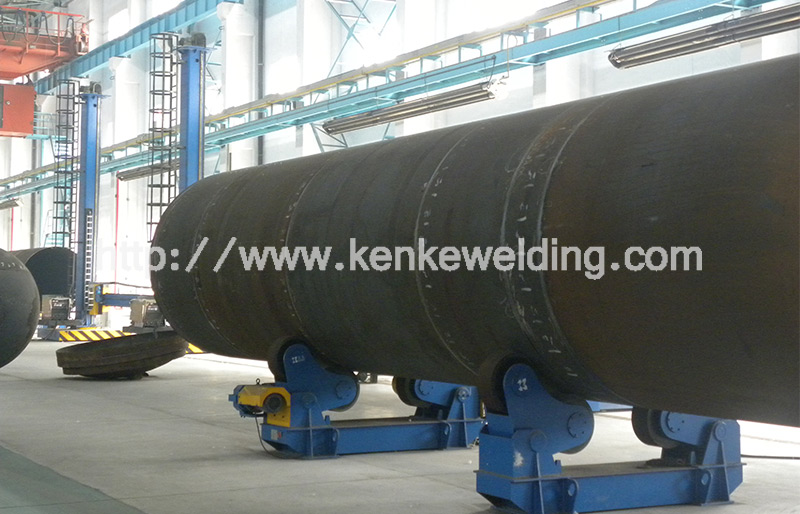

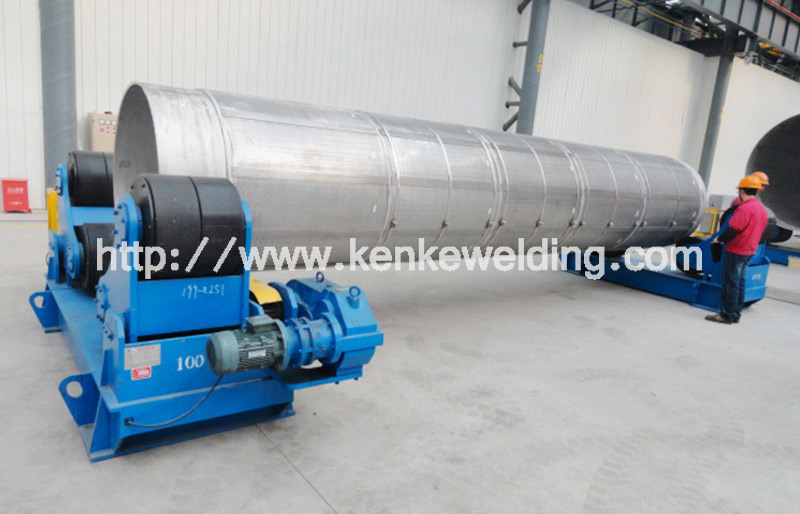

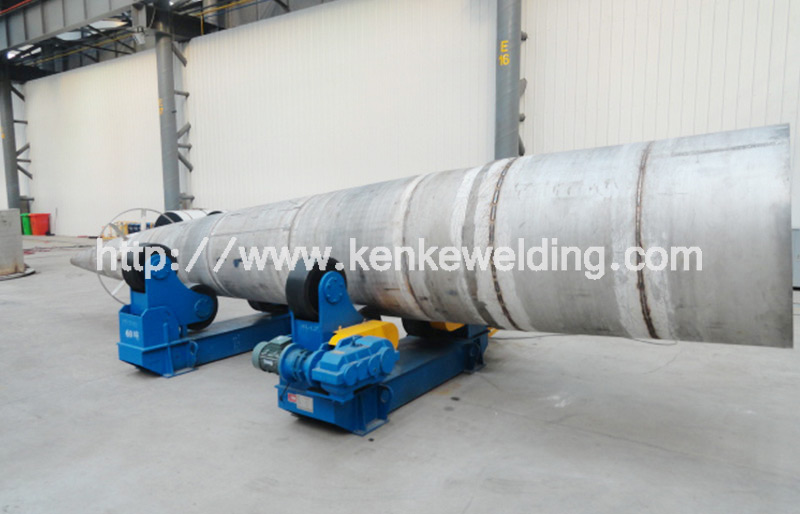

For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.
Welded, robust steel construction.
Adjustable rotating speed.
Automatically matching different diameter’s workpiece.
Unit equipped with 4 rollers each.
1 Power and 1 Idler turning rolls
1 Electric control system
1 control panel
1 remote pendant
Model | Max. load | Workpieces dia. | Roller material | Roller dia. | Roller width | Rolling speed | Roller motor |
HGZT-5 | 5,000kg | Ø250-Ø2,500mm | Steel coated with PU | Ø250mm | 100mm | 6-60m/h | 2x0.37kw |
HGZT-10 | 10,000kg | Ø320-Ø3,200mm | Steel coated with PU | Ø300mm | 120mm | 6-60m/h | 2x0.55kw |
HGZT-20 | 20,000kg | Ø500-Ø3,800mm | Steel coated with PU | Ø350mm | 150mm | 6-60m/h | 2x1.1kw |
HGZT-30 | 30,000kg | Ø550-Ø4,000mm | Steel coated with PU | Ø350mm | 150mm | 6-60m/h | 2x1.5kw |
HGZT-40 | 40,000kg | Ø600-Ø4,500mm | Steel coated with PU | Ø400mm | 160mm | 6-60m/h | 2x1.5kw |
HGZT-60 | 60,000kg | Ø750-Ø5,000mm | Steel coated with PU | Ø450mm | 180mm | 6-60m/h | 2x2.2kw |
HGZT-80 | 80,000kg | Ø850-Ø5,500mm | Steel coated with PU | Ø450mm | 240mm | 6-60m/h | 2x3kw |
HGZT-100 | 100,000kg | Ø1,000-Ø6,300mm | Steel coated with PU | Ø500mm | 240mm | 6-60m/h | 2x3kw |
HGZT-150 | 150,000kg | Ø1,000-Ø6,300mm | Steel coated with PU | Ø500mm | 300mm | 6-60m/h | 2x4kw |
