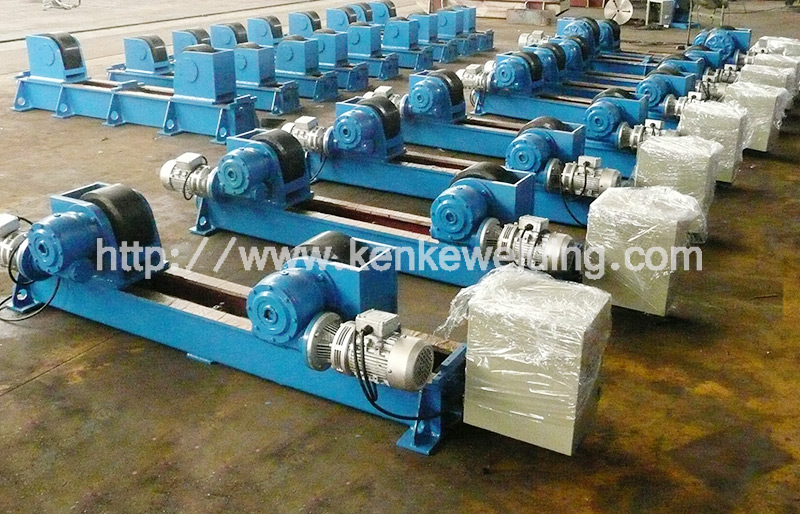

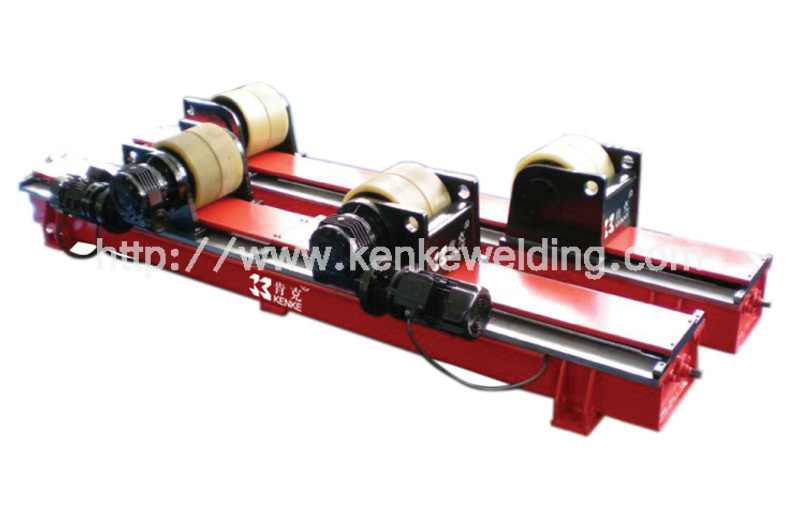

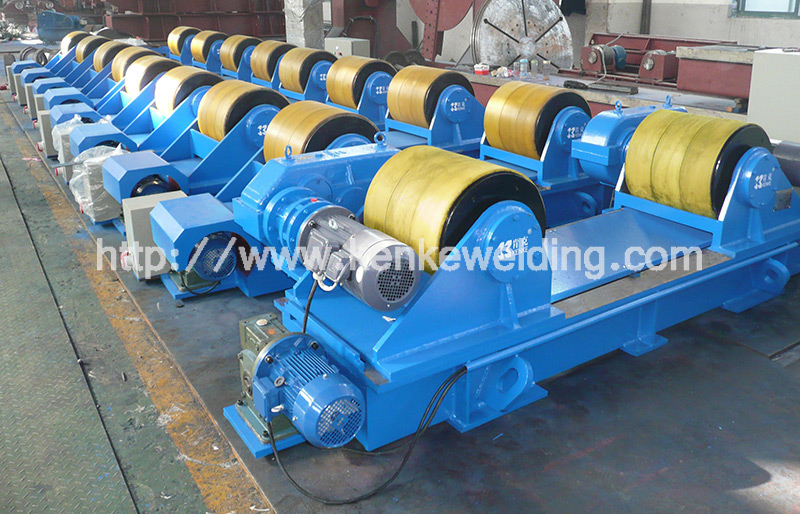

Lead Screw Rotator-HGKS Series

Stable Rotating process

The HGKS series lead screw rotator covers many workpiece diameters.

The distance between rollers could be manually increased or reduced to meet different diameters of workpieces.

Two synchronously operating motors arrange for a continuous rotation with frequency conversion stepless speed controlling.

Features of lead screw rotator

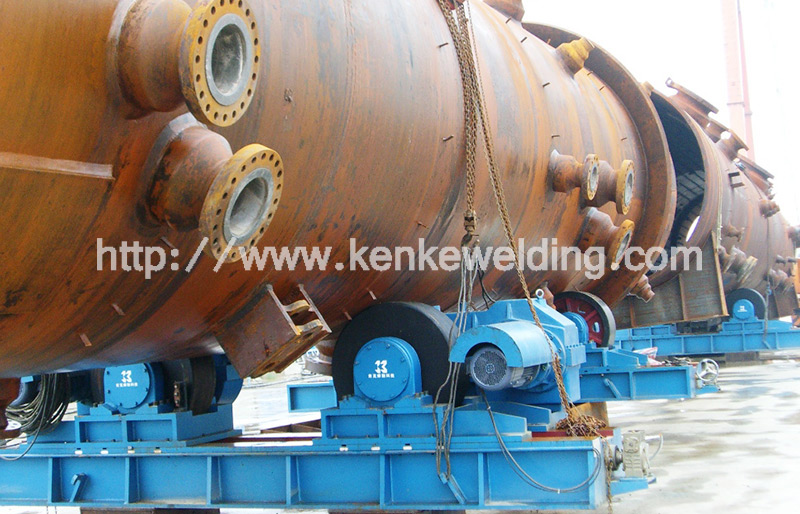

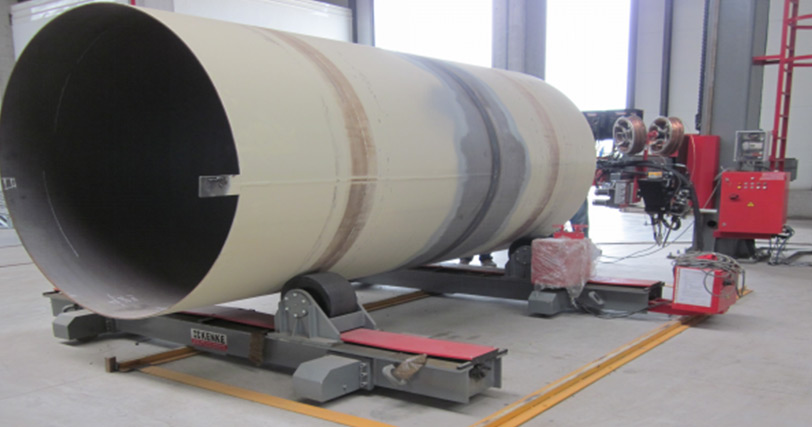

For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.

Welded, robust steel construction.

Adjustable rotating speed.

Roller distance lead-screw manually adjustable.

Unit equipped with 2 rollers each.

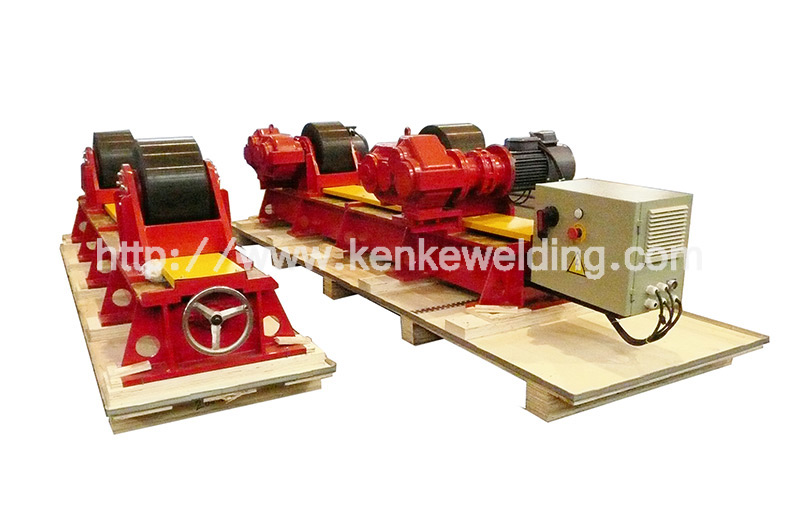

1 Power and 1 Idler turning rolls

1 Electric control system

1 control panel

1 remote pendant

Main Technical Parameter of lead screw rotator

Model	Max. load	Workpieces dia.	Roller material	Roller dia.	Roller width	Rolling speed	Roller motor
HGKS-2	2,000kg	Ø150-Ø2,000mm	Steel coated with PU	Ø200mm	80mm	6-60m/h	2x0.18kw
HGKS-5	5,000kg	Ø250-Ø2,800mm	Steel coated with PU	Ø250mm	120mm	6-60m/h	2x0.37kw
HGKS-10	10,000kg	Ø300-Ø3,200mm	Steel coated with PU	Ø300mm	130mm	6-60m/h	2x0.55kw
HGKS-20	20,000kg	Ø500-Ø4,500mm	Steel coated with PU	Ø350mm	180mm	6-60m/h	2x1.1kw
HGKS-40	40,000kg	Ø500-Ø5,000mm	Steel coated with PU	Ø400mm	220mm	6-60m/h	2x1.5kw
