Anti-drift Rotator-HGKF Series

Stable Rotating process

The HGKF series ANTI-DRIFT rotator is developed from Conventional Rotator.

When the pipe turns on the rotator, the pipe will drift to one direction on the rotator. The main cause of drifting is the unbalance weight of the pipe.

So we make a design of lifting device on the roller base of idler rotator. This device can let the roller move up/down to solve the problem of drifting.

There are options of manual adjusting method and automatic adjusting method on this design.

Features of Anti-drift Rotator

For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.

Welded, robust steel construction.

Yaskawa frequency conversion speed control system.

Schneider, Siemens electrical components.

Compact and robust design, easy to operate.

Delivery Scope of Anti-drift Rotator

1 Power and 1 Idler turning rolls

1 Electric control system

1 control panel

1 remote pendant

Main Technical Parameters of Anti-drift Rotator




Model	Max. load	Workpieces dia.	Roller material	Roller dia.	Roller width	Rolling speed	Roller motor
HGKF-200	200T	Ø800-Ø6,500mm	Forging Steel 42CrMo	Ø650mm	250mm	6-60m/h	2X4kw
HGKF-250	250T	Ø800-Ø6,500mm	Forging Steel 42CrMo	Ø650mm	250mm	6-60m/h	2X5.5kw
HGKF-300	300T	Ø800-Ø6,500mm	Forging Steel 42CrMo	Ø700mm	300mm	6-60m/h	2X5.5kw
HGKF-500	500T	Ø1,000-Ø8,000mm	Forging Steel 42CrMo	Ø750mm	350mm	6-60m/h	2X7.5kw
HGKF-800	800T	Ø1,000-Ø8,000mm	Forging Steel 42CrMo	Ø850mm	400mm	6-60m/h	2X15kw




This kind of production is specialize designed according to customer’s requirement.

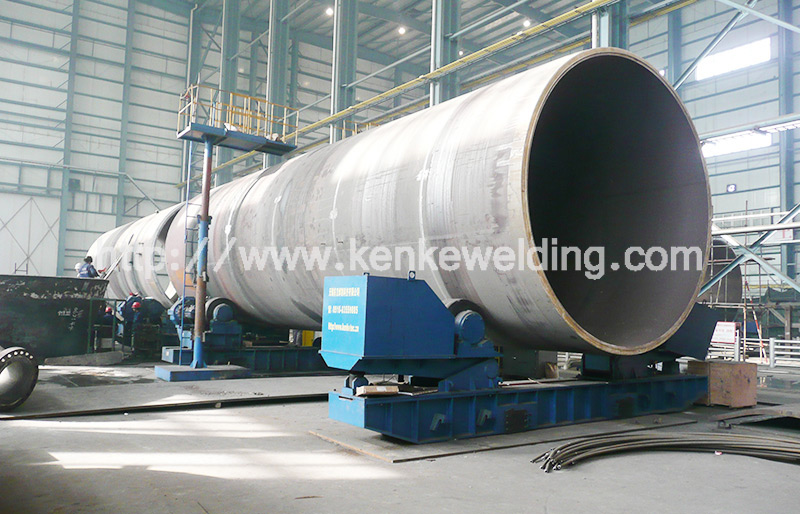

HGKF1600 Anti-drift Rotator(1600t)

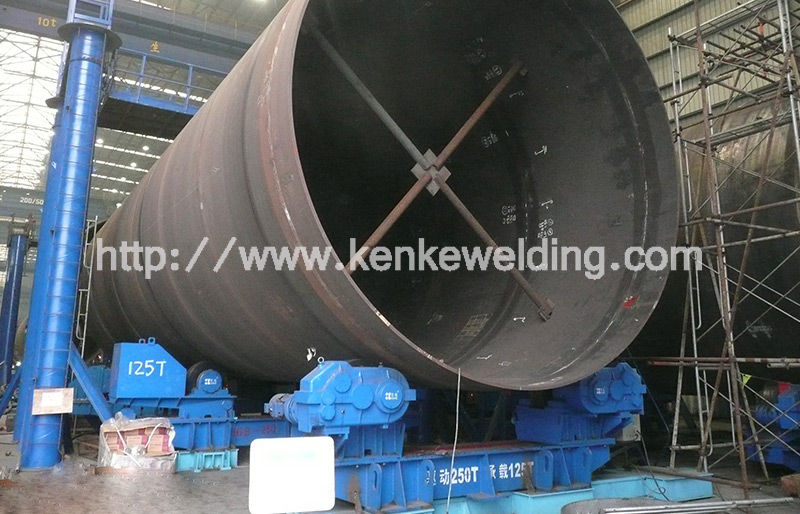

HGKF800 Anti-drift Rotator(800t)

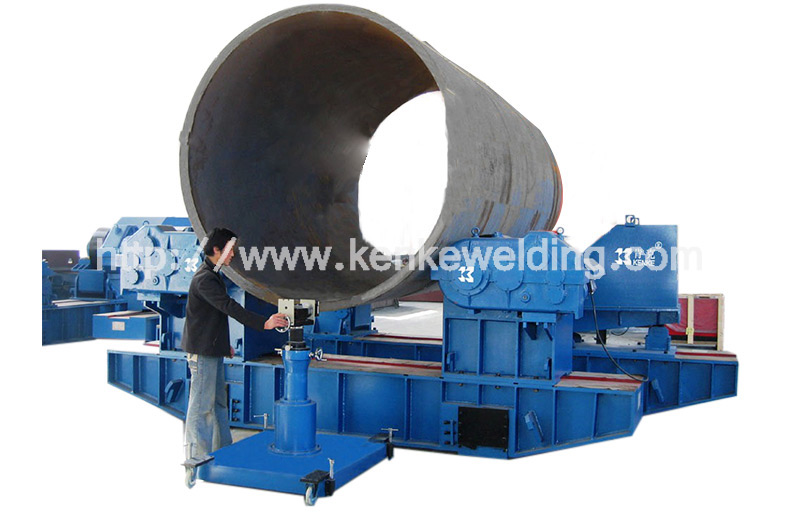

HGKF500 Anti-drift Rotator(500t)

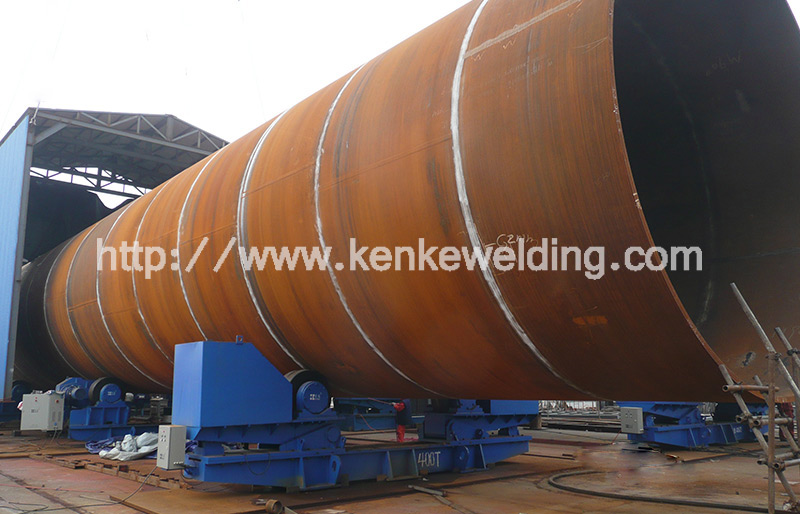

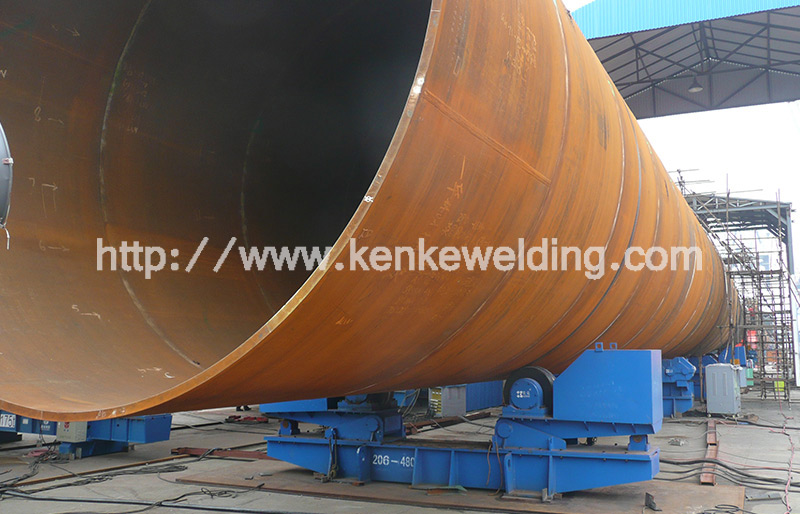

HGKF480 Anti-drift Rotator(480t)

HGKF250 Anti-drift Rotator(250t)
