Double Base Welding Positioner-TWS Series

Introduce
Scope of Supply
Parameter
Application

Practical and Versatile of Welding Positioner

KENKE has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. KENKE’s positioners are with capacities ranging for 300 to 500,000kgs.

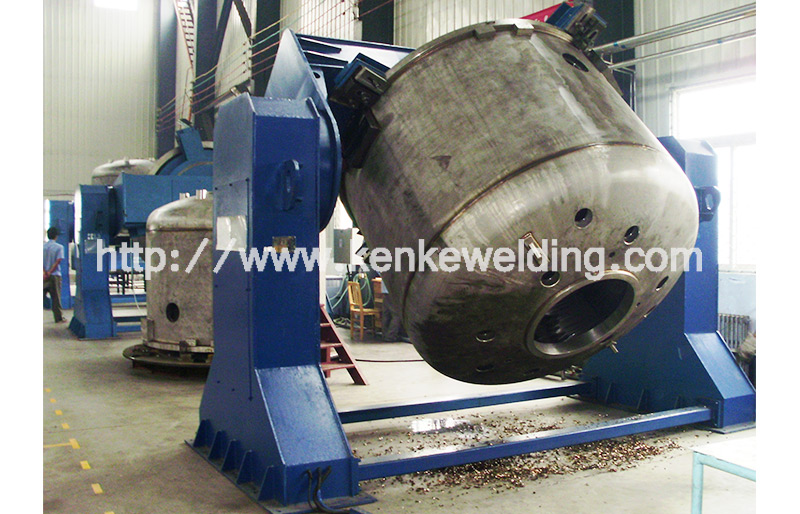

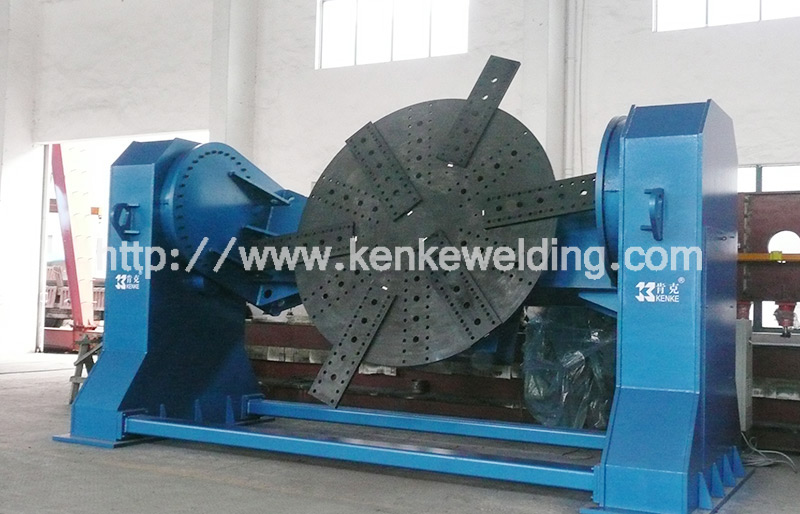

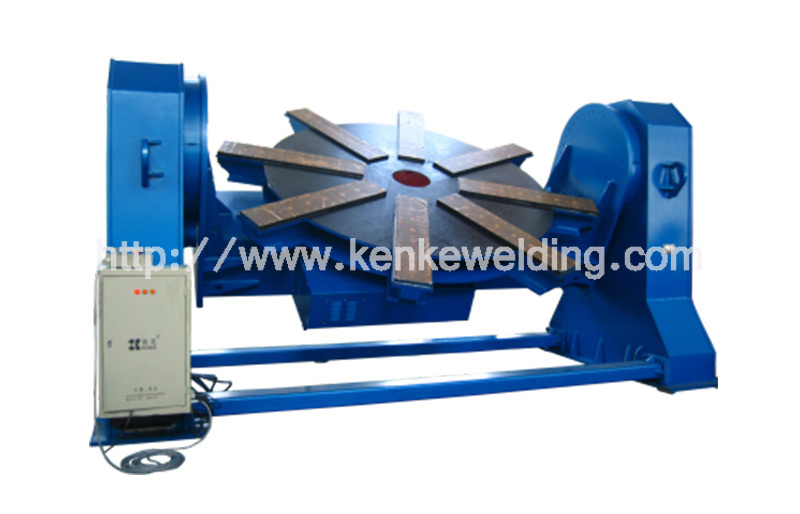

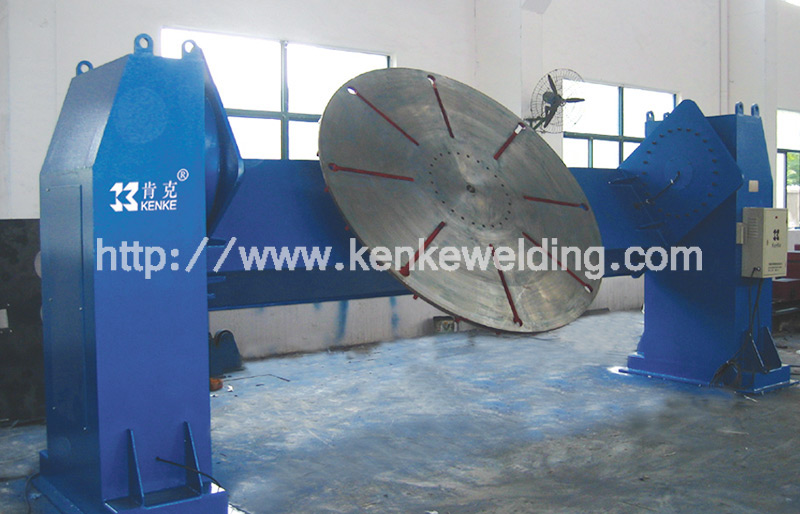

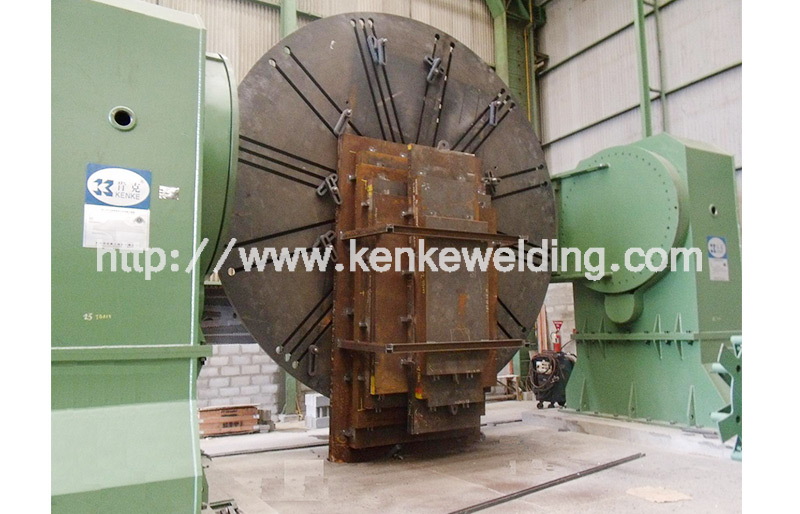

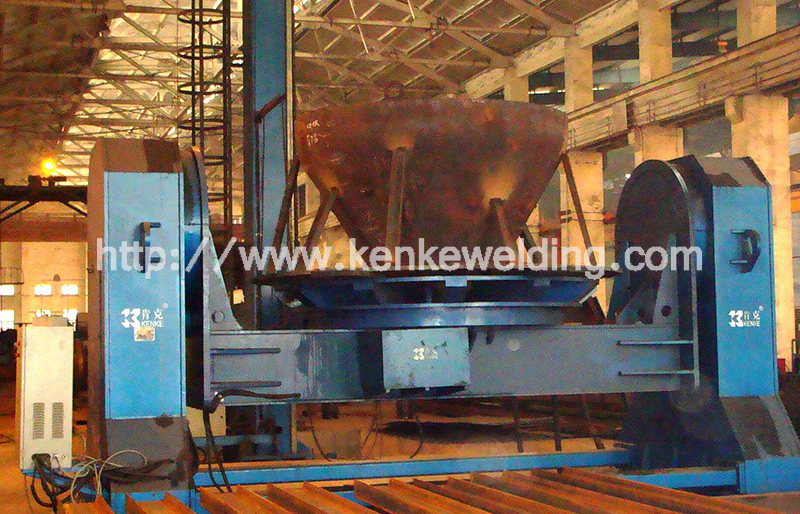

KENKE TWS Series double base welding positioners are the best solution to the problem of rotating and tilting of large work pieces. Tilting angle and rotation speed are all adjustable. They have infinitely variable height control as a result of a remote control of all functions.

1 Main body

1 Electric control system

1 control panel

1 remote pendant

Model	Max. load	Distance of Gravity	Eccentricity distance	Rotation speed	Tilting range	Table diameter
TWS50	5,000 kg	600 mm	200 mm	0.05-0.5 rpm	0°±90°	2,500 mm
TWS100	10,000 kg	600 mm	200 mm	0.05-0.5 rpm	0°±90°	2,500 mm
TWS200	20,000 kg	1,000 mm	200 mm	0.04-0.4 rpm	0°±90°	3,000 mm
TWS300	30,000 kg	1,500 mm	200 mm	0.03-0.3 rpm	0°±90°	3,500 mm
TWS500	50,000 kg	2,000 mm	200 mm	0.02 - 0.2 rpm	0°±90°	4,000 mm
TWS1000	100,000 kg	2,500 mm	200 mm	0.01 - 0.1 rpm	0°±90°	4,000 mm
