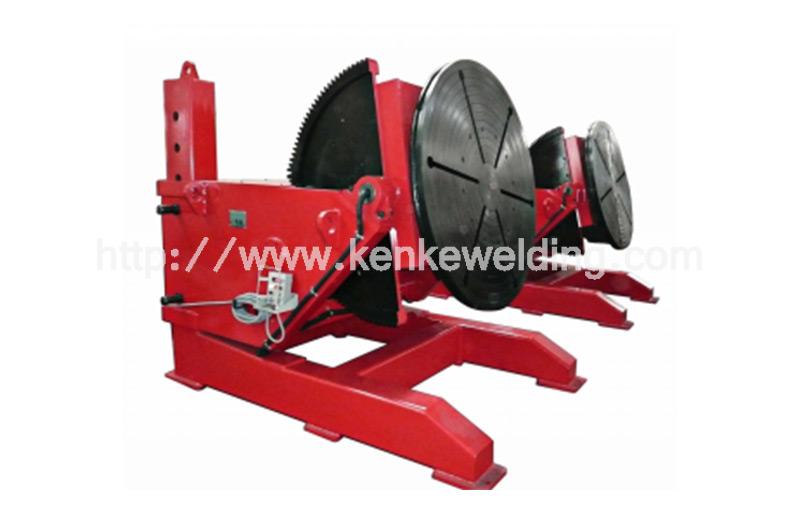

Elevating Welding Positioner-HBS Series

Practical and Versatile of Welding Positioner

KENKE has a comprehensive range of welding positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. KENKE’s welding positioners are with capacities ranging for 300 to 500,000kgs.

KENKE HBS Series elevation welding positioners are the perfect solution to the problem of rotating and tilting demanding work pieces. Center height, Angle and rotation speed are all adjustable.

1 Main body

1 Electric control system

1 control panel

1 remote pendant

1 foot switch

Main Parameters of Elevating Welding Positioner

Model	Max. load	Distance (G)* of Gravity	Eccentricity (E)* distance	Rotation speed	Tilting range	Table diameter
HBS-06	600 kg	200 mm	100 mm	0.1-1 rpm	0º-135º	1000 mm
HBS-10	1,000 kg	200 mm	100 mm	0.075-0.75 rpm	0º-135º	1000 mm
HBS-20	2,000 kg	200 mm	200 mm	0.08-0.8 rpm	0º-135º	1200 mm
HBS-30	3,000 kg	200 mm	200 mm	0.05 -0.5 rpm	0º-135º	1400 mm
HBS-50	5,000 kg	300 mm	200 mm	0.05 -0.5 rpm	0º-135º	1500 mm
HBS-100	10,000 kg	350mm	200mm	0.05 -0.5 rpm	0º-135º	1800 mm

Please note when you select your Positioner, the gravity center and eccentricity of your work-pc including chuck.

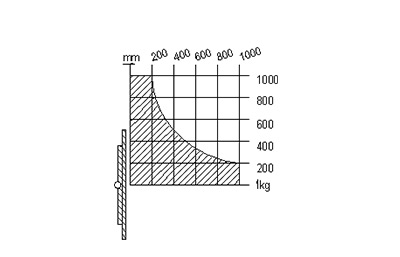

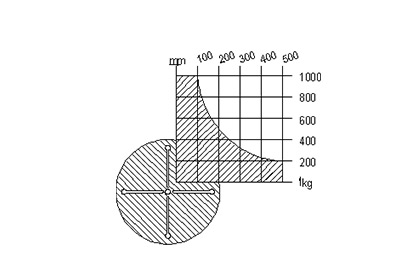

The right two figures show HBS10 positioner’s relationship of gravity center distance and Eccentricity distance with work-pc.

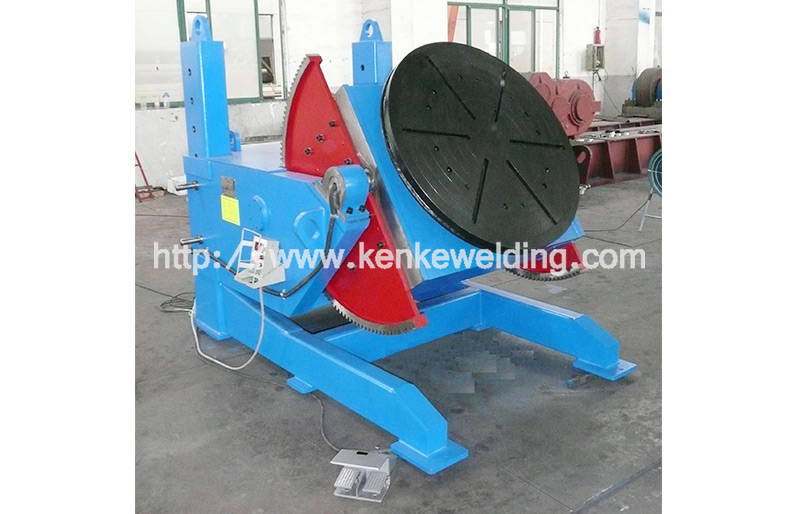

HBS100 Elevating Positioner

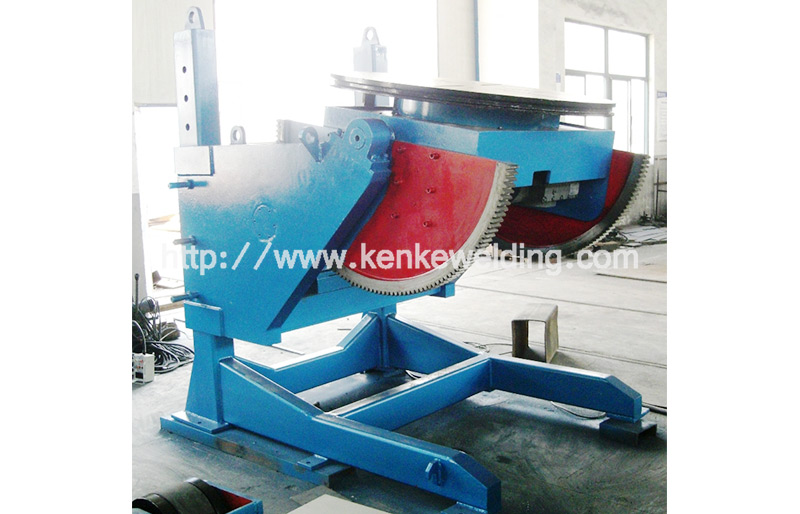

HBS20 Elevating Positioner

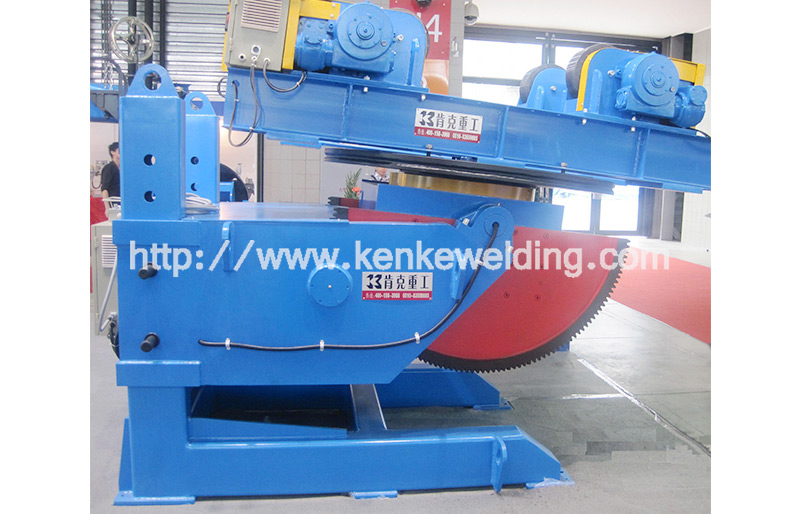

HBS30 Elevating Positioner

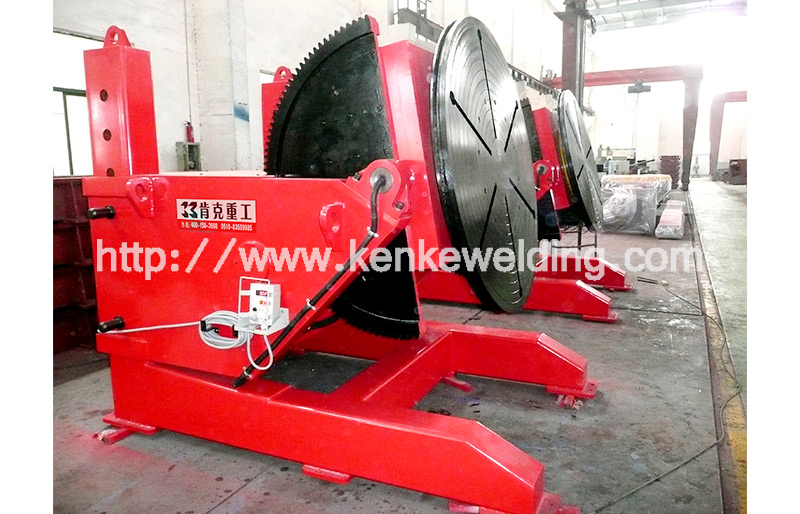

HBS50 Elevating Positioner
