Practical and Versatile of Hydraulic Positioner
KENKE has a comprehensive range of welding positioners for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. KENKE’s positioners are with capacities ranging for 100 to 200,000kgs.

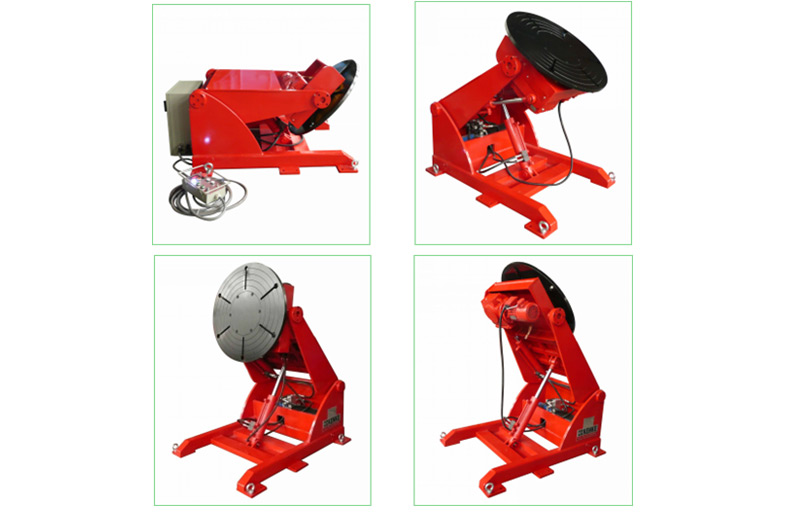

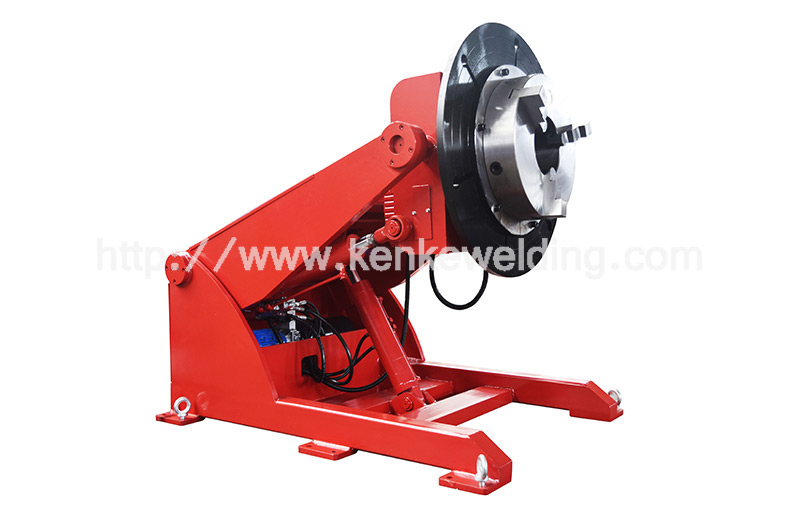

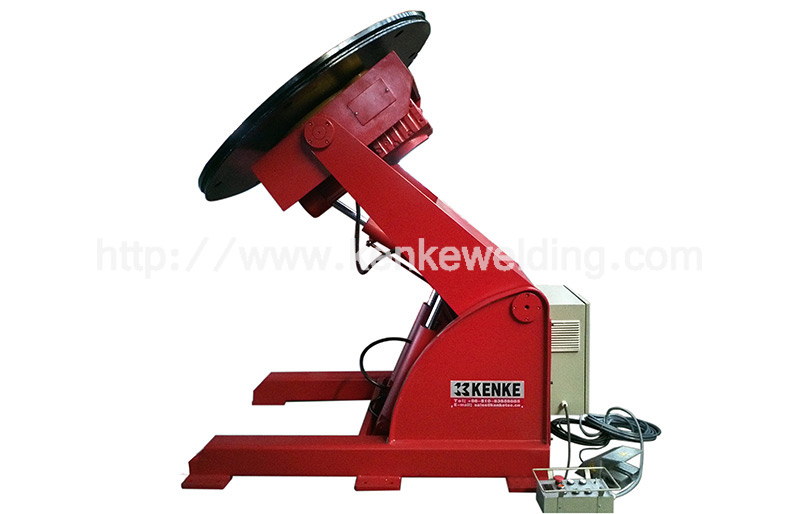

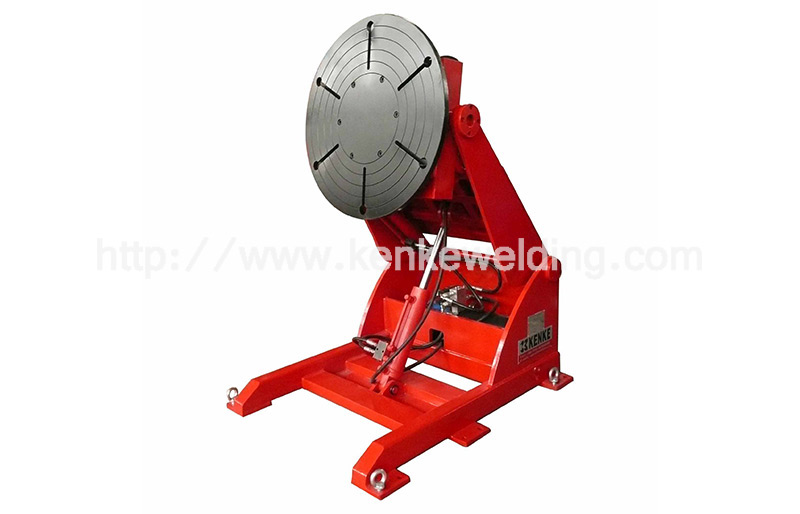

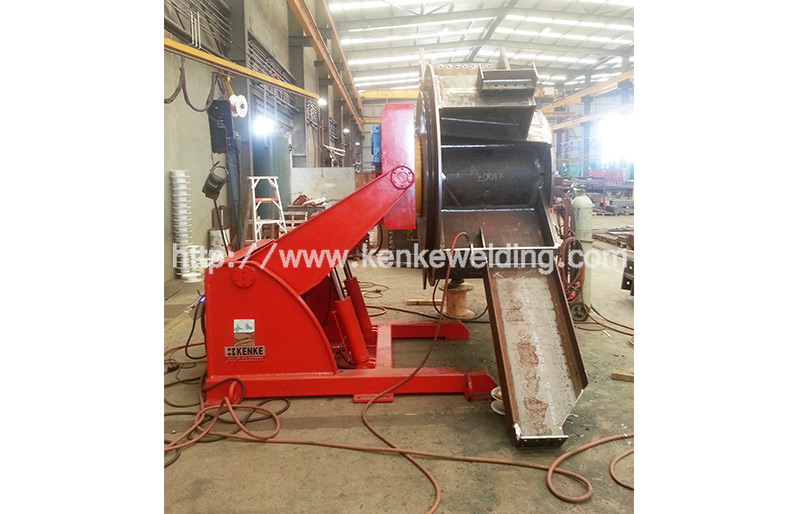

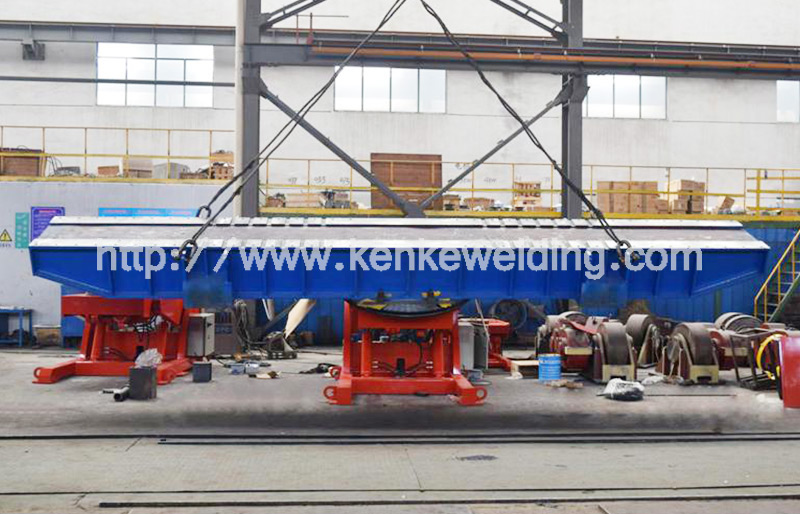

KENKE HBS-HYD Series hydraulic elevating & tilting positioners are the best solution to the problem of lifting, rotating and tilting demanding work pieces. Height, angle and speed are all adjustable. They have infinitely variable height control as a result of a hydraulic cylinder and remote control of all functions.
1 Main body
1 Electric control system
1 control panel
1 remote pendant
1 foot switch
Main Parameters of Hydraulic Positioner
Model | Max. load | Distance (G)* | Eccentricity | Rotation speed | Tilting range | Table diameter |
HYD-06 | 600 kg | 250 mm | 200 mm | 0.1-1 rpm | -45°-135° | 900 mm |
HYD-10 | 1,000 kg | 250 mm | 200 mm | 0.1-1 rpm | -45°-135° | 900 mm |
HYD-20 | 2,000 kg | 250 mm | 200 mm | 0.1-1 rpm | -45°-135° | 1000 mm |
HYD-30 | 3,000 kg | 300 mm | 200 mm | 0.05 - 0.5 rpm | -45°-135° | 1400 mm |
HYD-50 | 5,000 kg | 300 mm | 200 mm | 0.05 - 0.5 rpm | -45°-135° | 1500 mm |
HYD-100 | 10,000 kg | 400mm | 200mm | 0.05 - 0.5 rpm | -45°-135° | 2000 mm |
HYD-200 | 20,000 kg | 600mm | 250mm | 0.05 - 0.5 rpm | -45°-135° | 2000 mm |
Please note when you select your Positioner, the gravity center and eccentricity of your work-pc including chuck.
The right two figures show HYD10 positioner’s relationship of gravity center distance and Eccentricity distance with work-pc.

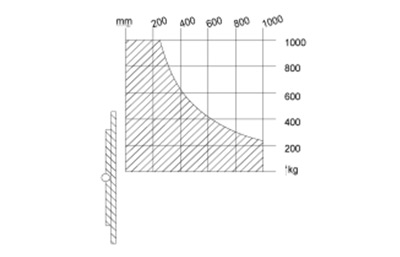

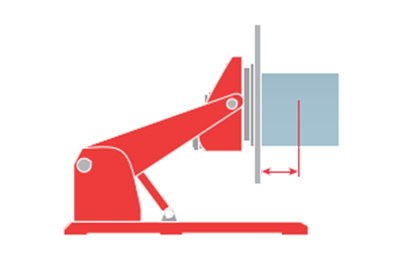

Gravity center (G)) sketch: Fig 1

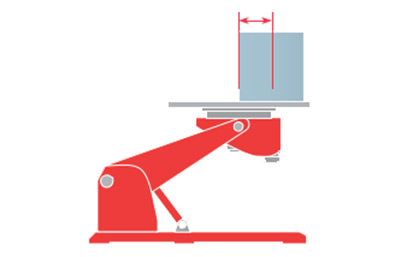

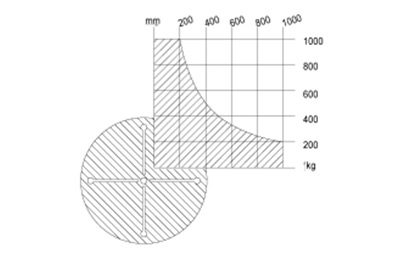

Eccentricity center (E) Sketch: Fig 2
Optimal Positioner
Whether you want to weld by hand or automatically, the HBS-HYD series positioner allows for welding in the optimum position, so that work hours are reduced with better quality.
