Practical and Versatile of Welding Turning Table
KENKE has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. KENKE’s positioners are with capacities ranging for 300 to 500,000kgs.

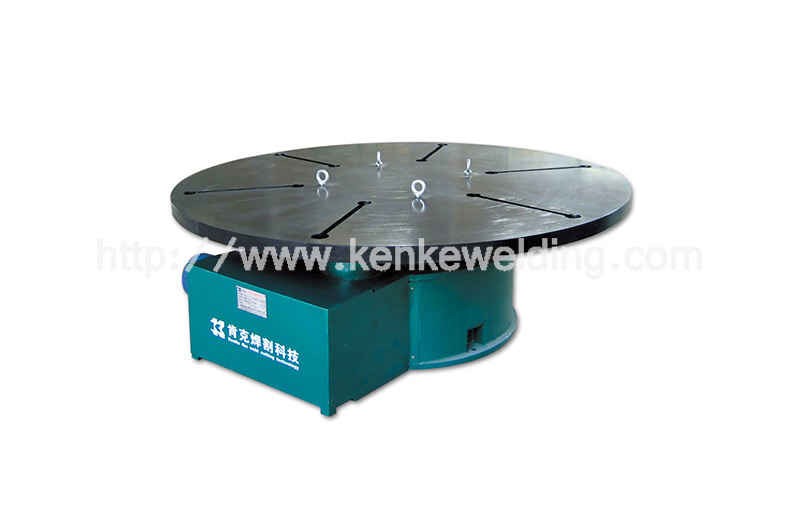

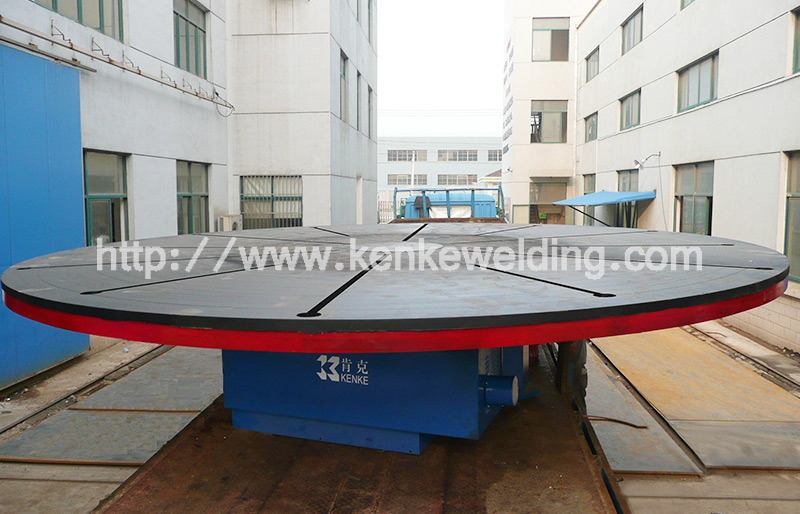

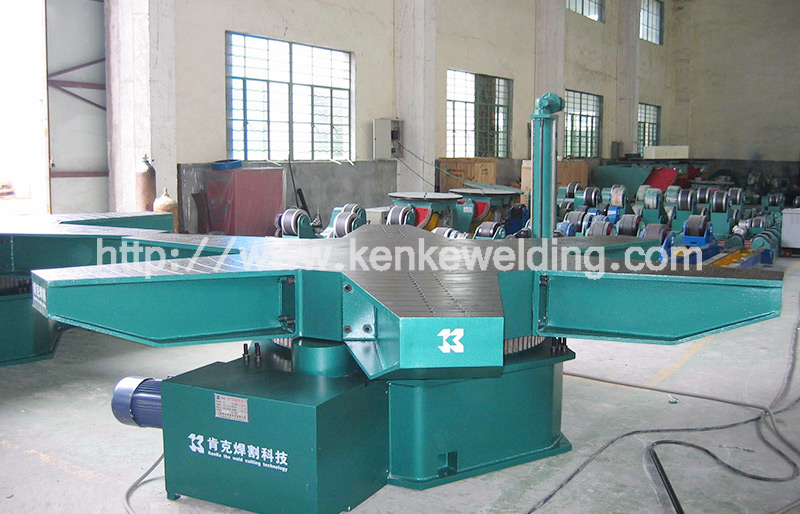

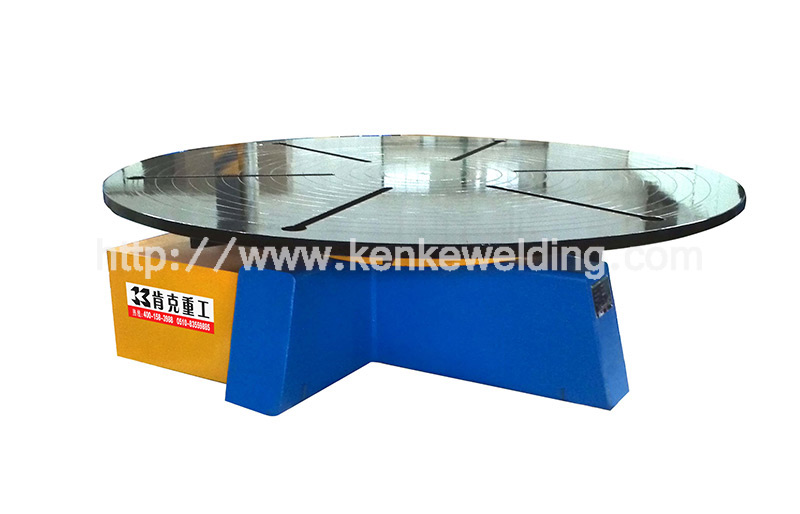

KENKE HJ Series welding turning tables are the best solution to the problem of rotating demanding work pieces. Turning speed is all adjustable. They have infinitely variable height control as a result of a remote control of all functions.
1 Main body
1 Electric control system
1 control panel
1 remote pendant
1 foot switch
Main Parameters of Welding Turning Table
Model | Max. load | Eccentricity distance | Rotation speed | Table diameter |
HJ-10 | 1,000 kg | 300 mm | 0.1 - 1 rpm | 1000 mm |
HJ-30 | 3,000 kg | 300 mm | 0.1 - 1 rpm | 1400 mm |
HJ-50 | 5,000 kg | 300 mm | 0.1 - 1 rpm | 1800 mm |
HBJ-100 | 10,000 kg | 300 mm | 0.05 - 0.5 rpm | 2000 mm |
HBJ-300 | 30,000 kg | 300 mm | 0.05 - 0.5 rpm | 2000 mm |
HBJ-500 | 50,000 kg | 300 mm | 0.05 - 0.5 rpm | 1000 mm |
HBJ-1000 | 100,000 kg | 300 mm | 0.05 - 0.5 rpm | 2000 mm |
