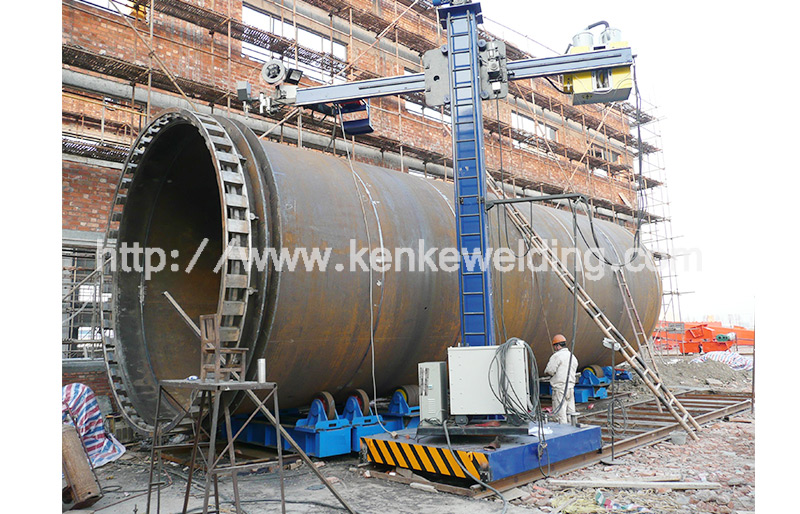

LHJ series Medium duty type welding manipulator could be assembled to automatic welding system with the welding turning roll, automatic welding machine and welding control system, etc. It's widely used in industries as boiler, pressure vessel, chemical petroleum, metallurgical construction and machinery for inner and outer longitudinal welding and circumferential welding of various seams on cylindrical members.

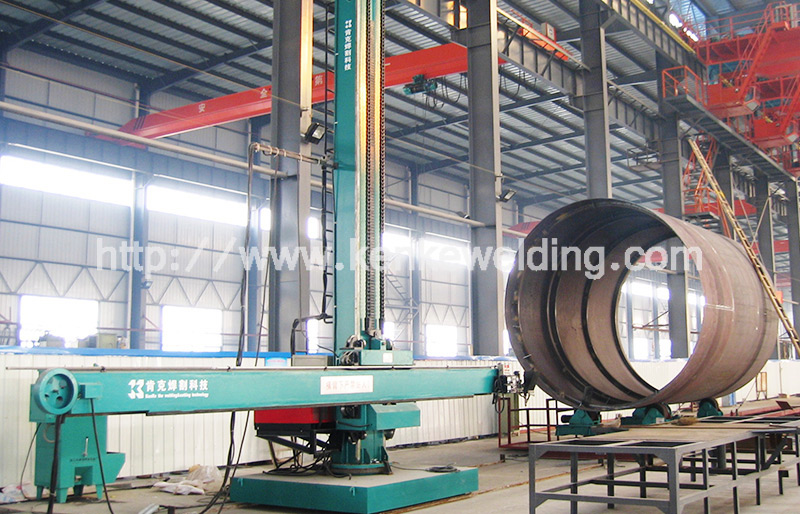

According to actual usage, the manipulator can be divided into fixed, fixed with rotation and moveable with rotation, etc.

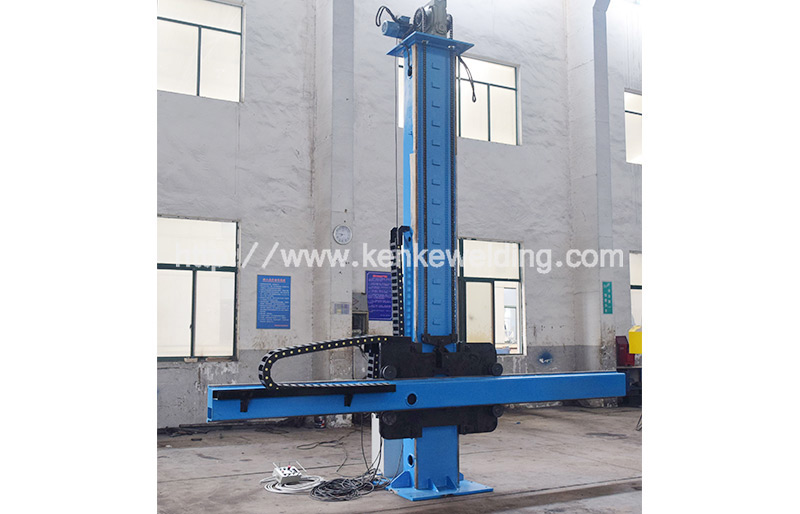

Features of Medium Duty Type Manipulator
Advanced structure
Complete function
Improving of welding quality
Normal loading capacity at the top of boom, 100-250kg.
1 column and 1 boom
1 Electric control system
1 control panel
1 remote pendant
1 | Model | LHJ | |
2 | Guide rail width, mm | 35 | |
3 | Lifting stroke (A), m | 2-5 | |
4 | Retractable stroke (B), m | 2-5 | |
5 | Lifting speed, mm/min | 600 | |
6 | Retractable speed, mm/min | 100-1500 | |
7 | Min height under boom(C), mm | 350 | |
8 | Min distance from column center to front end of the boom (D), mm | 800 | |
9 | Column revolving | Angle(°) | ±180 |
Speed(rpm) | 0.11 | ||
10 | Trolley speed, mm/min | 2000 | |
11 | Trolley height (E), mm | 380 | |
12 | Inner side distance of rail (F), mm | 1500 | |

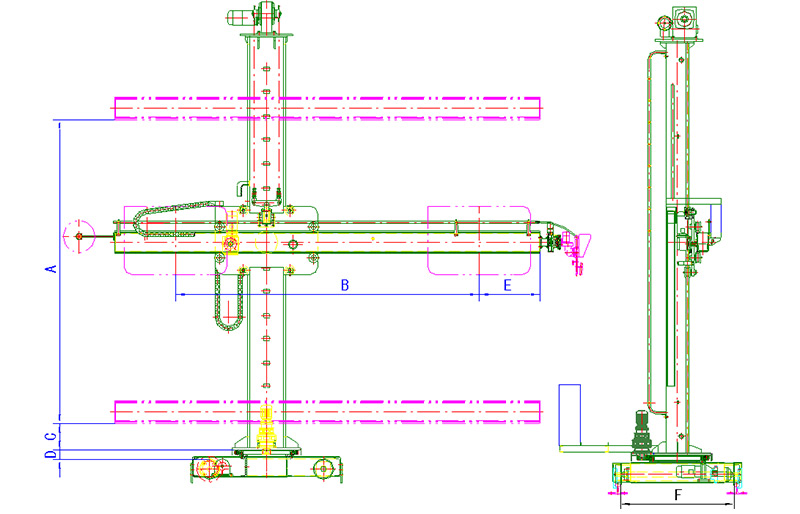

Main Technical Parameter of Medium Duty Type Manipulator
