Light Duty Type Manipulator-LHQ Series

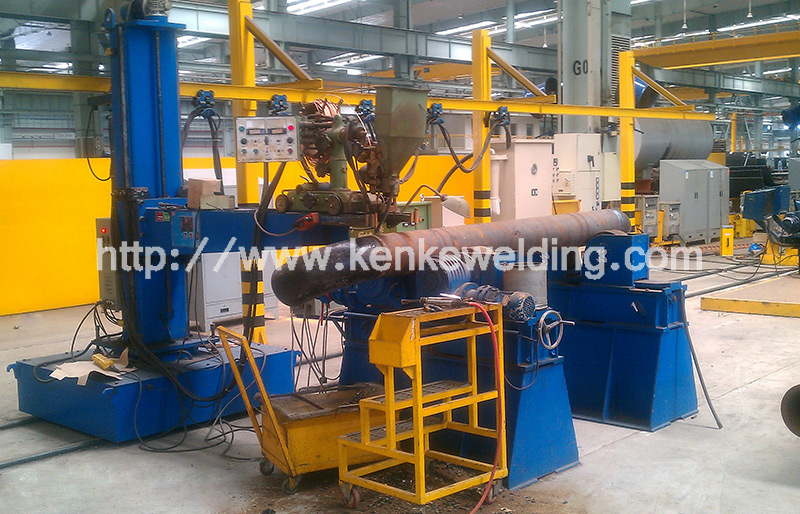

LHQ series Light duty type welding manipulator could be assembled to automatic welding system with the welding turning roll, automatic welding machine and welding control system, etc. It’s widely used in industries as boiler, pressure vessel, chemical petroleum, metallurgical construction and machinery for inner and outer longitudinal welding and circumferential welding of various seams on cylindrical members.

According to actual usage, the manipulator can be divided into fixed, fixed with rotation and moveable with rotation, etc.

Features of Light Duty Type Manipulator

Advanced structure

Complete function

Improving of welding quality

Light loading capacity at the top of boom, 50-150kg.

1 column and 1 boom

1 Electric control system

1 control panel

1 remote pendant

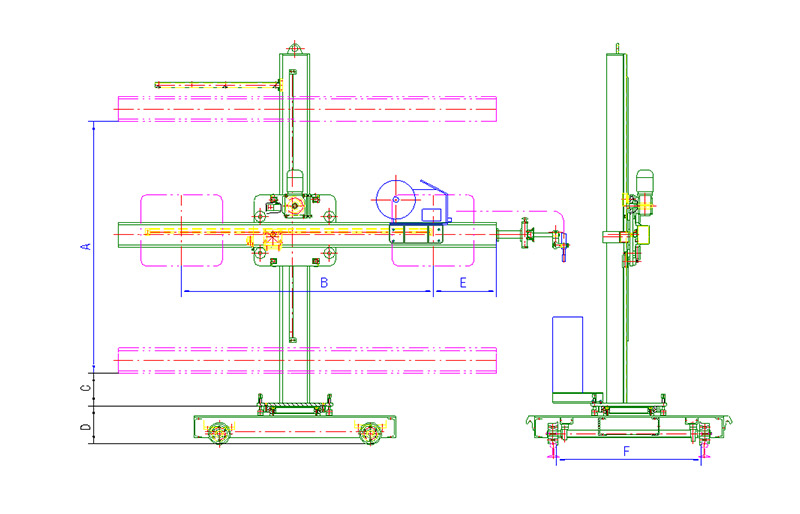

1	Model		LHQ
2	Guide rail width, mm		25
3	Lifting stroke (A), m		1-3
4	Retractable stroke (B), m		1-3
5	Lifting speed, mm/min		800
6	Retractable speed, mm/min		100-1500
7	Min height under boom(C), mm		260
8	Min distance from column center to front end of the boom (D), mm		500
9	Column revolving	Angle(°)	±180
		Speed(rpm)	Manual
10	Trolley speed, mm/min		Manual
11	Trolley height (E), mm		300
12	Inner side distance of rail (F), mm		1200
